VCW102 Version 3 (VCW102v3) 2000W Peak (1000W RMS) 10" VC-Series v3 Dual 2-Ohm Subwoofer

Product Details:

• 10" Dual 2 ohm VC Series Subwoofer
• Power Handling:
• Peak: 2000 watts
• RMS: 1000 watts

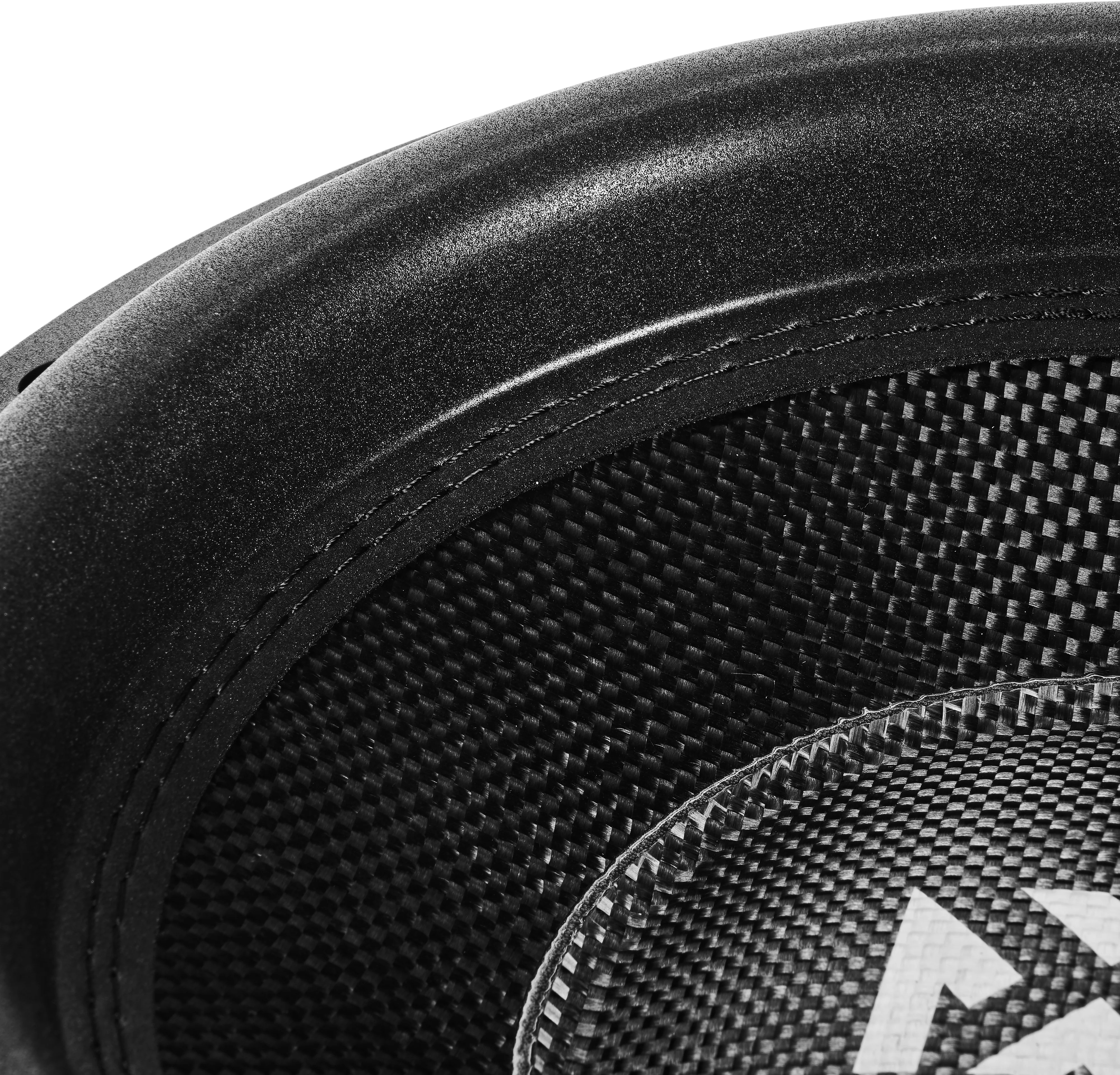

• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Die cast aluminum vented basket

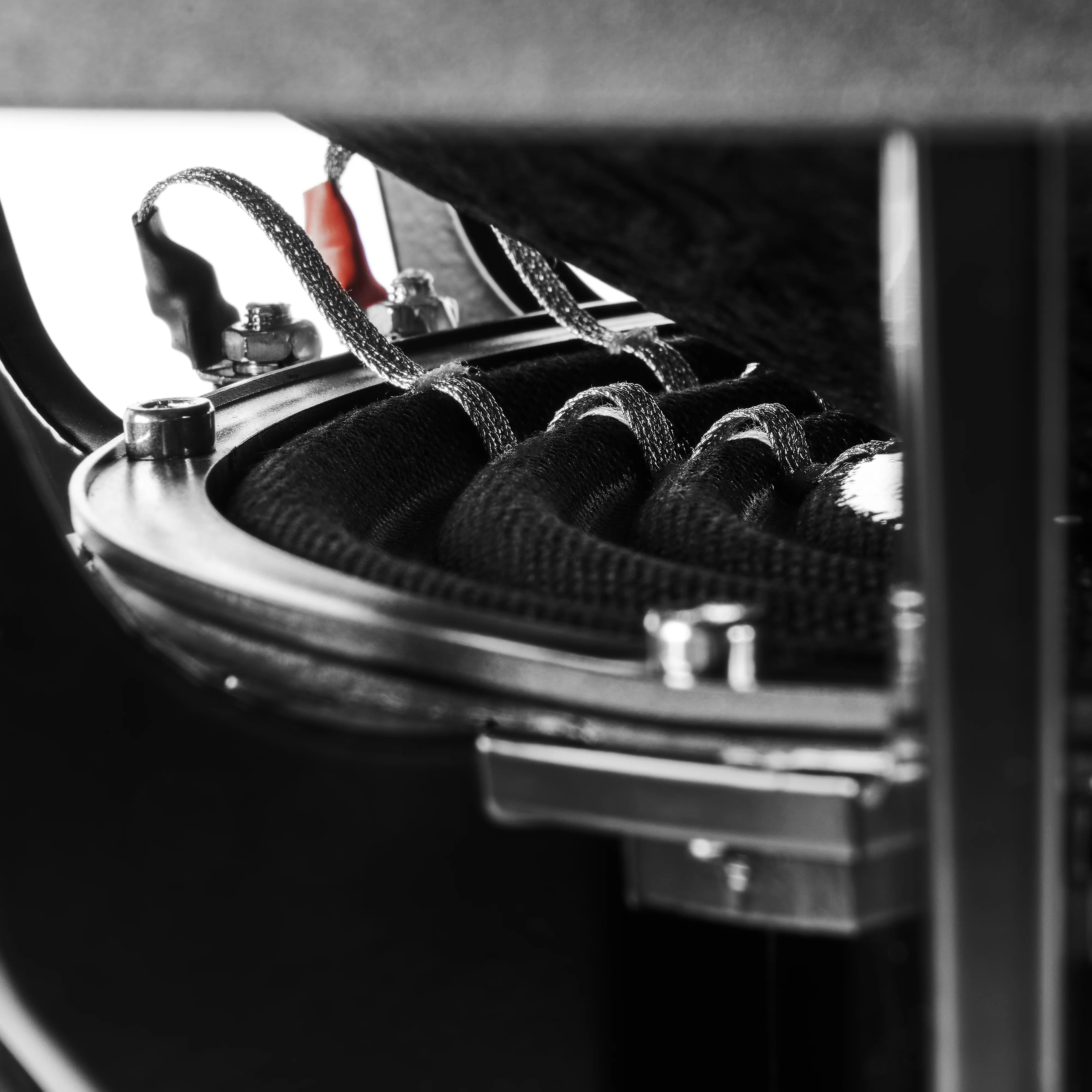

• Dual progressive-roll spiders with integrated flat-braided leads

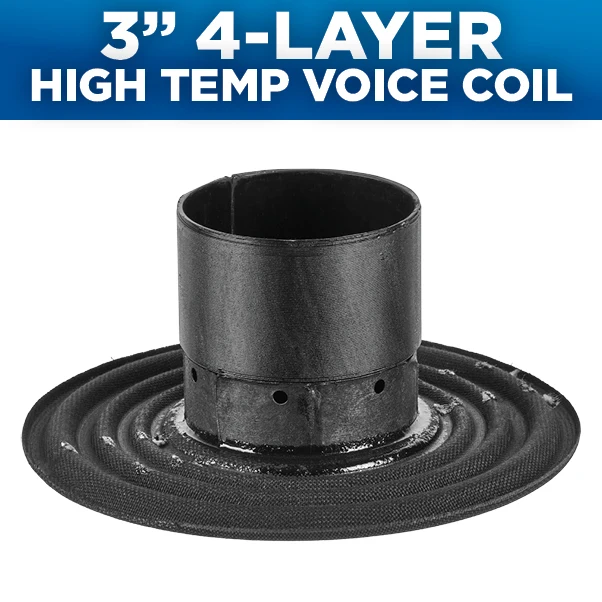

• 3.0" 4-Layer High Temperature Black Aluminum Voice coil
• Optimized high-velocity pole vent
• One-piece T-Yoke with integrated gap venting
• 165 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
• 22 mm Xmax (one-way) for massive air movement
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 27.3 Hz
• Sensitivity: 82 dB (1W/1m)
• Optimal sealed box volume: 0.55 cubic feet
• Optimal ported box volume: 1.25 cubic feet
• Top-mount depth: 6.30"
• Cutout diameter: 9.65"
• CTA-2031 Compliant
• 1-year Warranty from the Original Purchase Date

VCW102v3 owner’s manual
